RDBMS & SQL

 ---
RDBMS Architecture

This architecture shows how a SQL query flows from the client through various processing layers before reaching the actual data on disk, with each component playing a crucial role in ensuring efficient, reliable database operations.

RDBMS Components

Client Applications Layer

SQL Clients, Web Apps, BI Tools

These are the programs that users interact with to send SQL queries to the database. They connect to the RDBMS server using protocols like JDBC, ODBC, or native database drivers. (python, nodejs, Java, etc)

Query Processor

Checks SQL syntax and converts queries into an internal format the database can understand. It validates that tables and columns exist and that the user has proper permissions.

Determines the most efficient way to execute a query by analyzing different execution plans. It considers factors like available indexes, table statistics, and join methods to minimize resource usage. This is what makes Postgresql super efficient.

Carries out the optimized query plan by coordinating with other components to retrieve or modify data according to the SQL command.

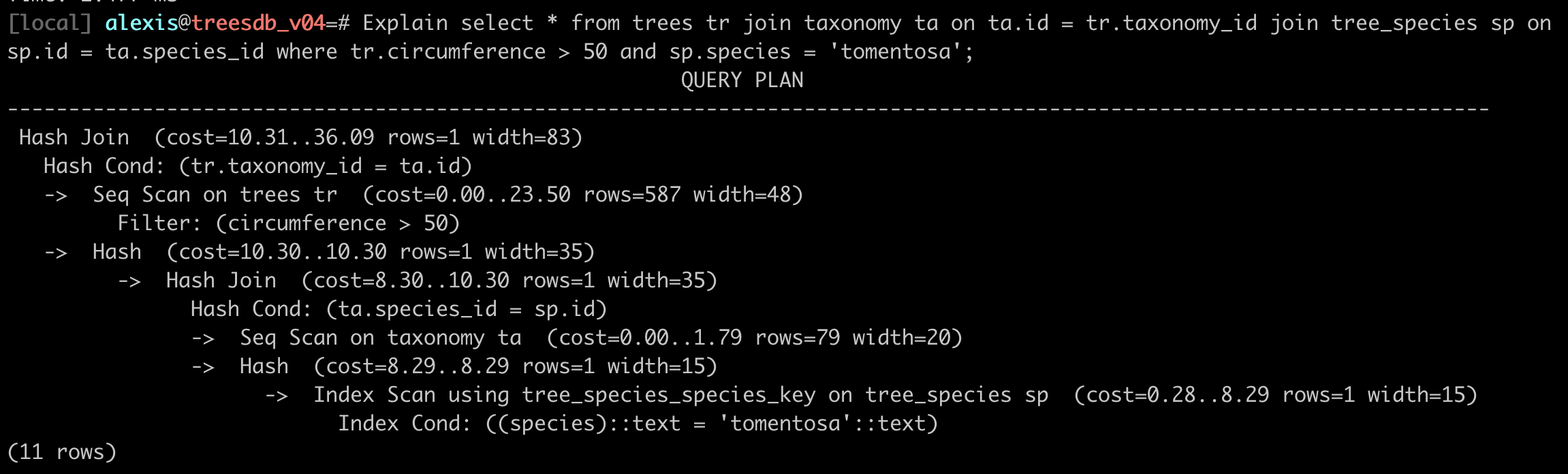

Example of a query plan with EXPLAIN

Explain
SELECT * FROM trees tr
JOIN taxonomy ta on ta.id = tr.taxonomy_id
JOIN tree_species sp on sp.id = ta.species_id
WHERE tr.circumference > 50 and sp.species = 'tomentosa';
Query Processor

Storage Engine

Manages how data is physically stored and retrieved from disk.

It handles different storage structures like heap files, B-trees for indexes, and implements algorithms for efficient data access.

Storage Engine

Transaction Manager

Ensures database transactions are

Buffer Manager

Memory Cache

Lock Manager

Concurrency Control

Database Files

Components

Component families and tools

Component families and tools

Data Manipulation:

The primary language for interacting with the database from within. Users and applications use SQL commands (SELECT, INSERT, UPDATE, DELETE) to query and modify data directly.

Tools and utilities for moving data in and out of the database. This includes bulk loading tools, data migration utilities, and export functions for backing up or transferring data to other systems.

in Postgres

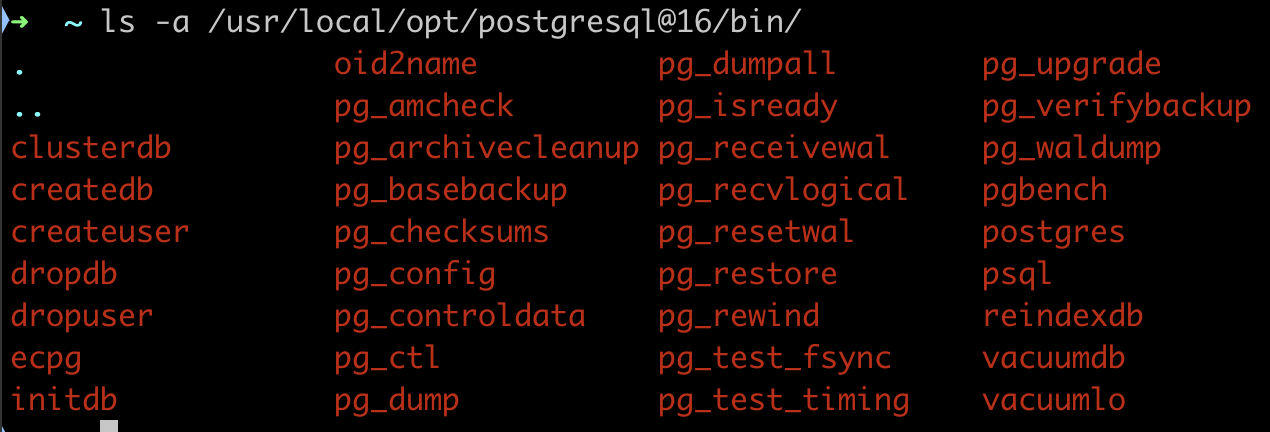

In postgresql we have command line executables: createdb, dropdb, pg_dump, pg_restore, pg_dumpall, pg_restoreall

these utilities are in the same folder as your psql executable

PostgreSQL Utilities

Database Exploitation

Organization and Optimization

Administrative functions that maintain database performance. This involves organizing data structures, managing storage allocation, and optimizing query execution paths to ensure fast response times.

In postgresql , we have for instance

Core Components

The logical database structure:

add : functions, triggers, sequences, etc

File System Layer

NTFS, NFS, etc. - The underlying operating system file systems where database files are physically stored. The database management system interfaces with these file systems to read and write data to disk. Common examples include:

SQL Evolution ---

Why Learn SQL in 2025?

  1. Universal: Every database speaks SQL
  2. Stable: Skills last your entire career
  3. Powerful: Complex operations in few lines
  4. Required: Every tech job posting mentions it
  5. Gateway: Opens doors to data science, analytics, engineering
**Master SQL, and you'll never lack job opportunities**

SQL

wikipedia.org/wiki/SQL

SQL Evolution

Evolution since the 1970s

SQL was created in the early 1970s. Here are the major features added through its evolution:

SQL-86 (SQL-87) - First ANSI Standard

SQL-89 (SQL1)

SQL-92 (SQL2)

SQL:1999 (SQL3)

SQL:2003

SQL:2006

SQL:2008

SQL:2011

SQL:2016

SQL:2023 (Latest)

Why SQL Survived 50 Years

# Python changes every few years
print "Hello"     # Python 2 (dead)
print("Hello")    # Python 3

# JavaScript changes constantly
var x = 5;        // Old way
let x = 5;        // New way
const x = 5;      // Newer way

-- SQL from 1990s still works today!
SELECT * FROM users WHERE age > 18;

SQL is the COBOL that actually stayed relevant

SQL vs Programming Languages

Imperative (Python/Java/C++): "HOW to do it"

results = []
for user in users:
    if user.age > 21 and user.country == 'France':
        results.append(user.name)
return sorted(results)

Declarative (SQL): "WHAT you want"

You describe the result, the database figures out HOW

Declarative means you describe what you want, not how to do it.

In SQL, you state the result you want, and the database (query planner) figures out how to get it.

SELECT name FROM students WHERE grade > 15;

✅ You focus on what, not how — that’s why SQL is declarative.

SQL + Modern Tools

SQL isn't just for database admins anymore:

# Modern data stack
df = pd.read_sql("SELECT * FROM events WHERE date > '2024-01-01'", conn)
model.train(df)

SQL Dialects

Same Language, Different Accents

Standard SQLPostgreSQLMySQLSQL Server
SUBSTRING()SUBSTRING()SUBSTRING()SUBSTRING()
❌LIMIT 10LIMIT 10TOP 10
❌STRING_AGG()GROUP_CONCAT()STRING_AGG()
❌::TEXT❌CAST AS VARCHAR

Core SQL (90%) is identical everywhere Fancy features (10%) vary

SQL Sub Languages

The SQL Family Tree

SQL
├── DDL (Data Definition Language)
│   └── CREATE, ALTER, DROP
├── DML (Data Manipulation Language)
│   └── INSERT, UPDATE, DELETE
├── DQL (Data Query Language)
│   └── SELECT, FROM, WHERE, JOIN
├── DCL (Data Control Language)
│   └── GRANT, REVOKE
└── TCL (Transaction Control Language)
    └── COMMIT, ROLLBACK, BEGIN

You'll use DML and DQL 90% of the time

Some database texts combine DQL with DML since SELECT statements can be considered data manipulation, resulting in 4 sub-languages instead of 5.

1. DDL - Data Definition Language

Defines and manages database structure

CREATE

create database epitadb;

create table students (
    id serial primary key,
    name varchar(100) not null,
    age int not null,
    grade int not null
);

ALTER table students ADD COLUMN graduation_year int;

DROP table students;

Simple version

CREATE TABLE <table_name> (
    id serial primary key,
    <column_name> <data_type> <constraints>,
    <column_name> <data_type> <constraints>,
    <column_name> <data_type> <constraints>,
    <column_name> <data_type> <constraints>,
);

with index and keys:

CREATE TABLE <table_name> (
    id serial primary key,
    <column_name> <data_type> <constraints>,
    <column_name> <data_type> <constraints>,
    <column_name> <data_type> <constraints>,
    <column_name> <data_type> <constraints>,
    INDEX <index_name> (<column_name>),
    UNIQUE INDEX <index_name> (<column_name>),
    FOREIGN KEY (<column_name>) REFERENCES <table_name>(<column_name>),
);

Create table documentation

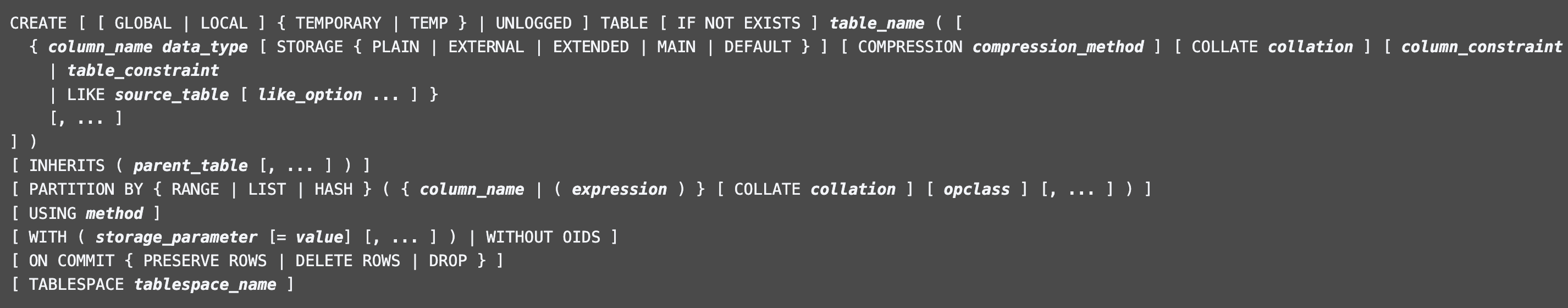

Let's look at the postgresql documentation for the create table statement:

Create Table

https://www.postgresql.org/docs/current/sql-createtable.html

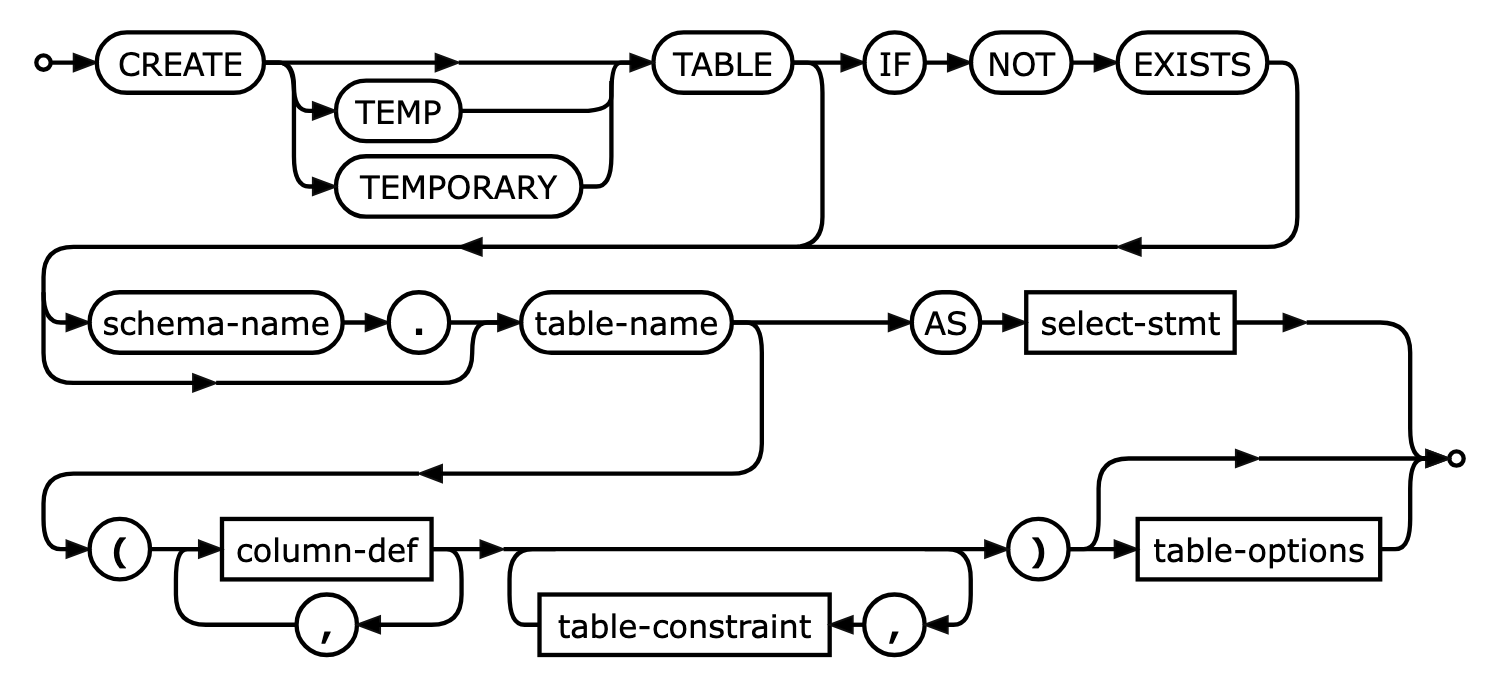

create table in sqlite

SQL Create Table

create table

Create table

in postgresql

CREATE TABLE employees (
    id SERIAL PRIMARY KEY,
    first_name VARCHAR(50) NOT NULL,
    last_name VARCHAR(50) NOT NULL,
    email VARCHAR(100) UNIQUE NOT NULL,
    hire_date DATE NOT NULL,
    salary NUMERIC(10, 2) NOT NULL,
    department_id INT NOT NULL,
    created_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
    updated_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP
);

It is good practice to use default values for date time columns and always have for tracabiliy purposess the 2 colums:

attention, the last column does not have a comma

2. DML - Data Manipulation Language

Manages data within tables

Also in DQL

Aggregate Functions (DQL)

Scalar Functions (DQL)

Clauses & Operations (DQL)

Window Functions (DQL)

Conditional Logic (DQL)

Insert

INSERT INTO <table_name> (
  <column_name>,
  <column_name>,
  <column_name>
)
VALUES (
  <value>,
  <value>,
  <value>
);

for instance

INSERT INTO courses (
    title,
    description,
    semester,
    hours
)
VALUES (
  "intro to databse",
  "the best database course in the universe ",
  "fall 2025",
  123
);

make sure

Multiple rows

you can insert multiple rows in one query

INSERT INTO <table_name> (
  <column_name>,
  <column_name>,
  <column_name>
)
VALUES
  (<value>, <value>, <value>),
  (<value>, <value>, <value>),
  (<value>, <value>, <value>);

Update

UPDATE <table_name>
SET <column_name> = <value>,
  <column_name> = <value>
WHERE <condition>;

for instance:

UPDATE courses
SET title = "intro to databse",
    description = "the best intro to database course in the universe",
    semester = "fall 2025",
    hours = 4
WHERE id = 1;

3. DQL - Data Query Language

Retrieves data from the database

SELECT <column_name>, <column_name>
FROM <table_name>
WHERE <condition>;

for instance:

SELECT title, description
FROM courses
WHERE semester = "fall 2025";

joining on the teacher id:

SELECT title, description, teachers.name
FROM courses
JOIN teachers ON courses.teacher_id = teachers.id
WHERE semester = "fall 2025";

4. DCL - Data Control Language

Controls access and permissions

GRANT SELECT, INSERT, UPDATE, DELETE ON <table_name> TO <user_name>;

for instance:

GRANT SELECT, INSERT, UPDATE, DELETE ON courses TO Alexis;

DCL vs pg_hba.conf

GRANT does not modify pg_hba.conf

These control different layers of access:

**pg_hba.conf (Connection Level)** - Controls WHO can connect to the server - Controls HOW they authenticate (password, trust, etc.) - Controls WHERE they can connect from (IP addresses) - "Can you get in the door?"
**GRANT (Permission Level)** - Controls what users can DO once connected - Controls access to specific databases, tables, schemas - Controls operations: SELECT, INSERT, UPDATE, DELETE, etc. - "What can you do once you're inside?"
---

Example flow:

  1. User tries to connect → pg_hba.conf checks if allowed
  2. User enters password → pg_hba.conf authentication method
  3. User runs SELECT * FROM products → GRANT checks if they have SELECT permission
postgres access flow diagram

Where GRANT info is stored:

You need **both**: pg_hba.conf to allow connection + GRANT to allow operations!

5. TCL - Transaction Control Language

Manages database transactions

BEGIN TRANSACTION;

-- Update all course credits by 1
UPDATE courses SET credits = credits + 1;

-- Give all teachers a 10% raise (you wish )
UPDATE teachers SET salary = salary * 1.10;

-- Check if any teacher salary is now over 20,000
IF EXISTS (SELECT 1 FROM teachers WHERE salary > 20000)
  BEGIN
      -- Something went wrong, undo everything
      ROLLBACK;
      PRINT 'Rolled back - salary too high! (for France)';
  END
ELSE
  BEGIN
      -- Everything looks good, save the changes
      COMMIT;
      PRINT 'Changes saved successfully!';
  END

Both COMMIT and ROLLBACK are "terminal" commands for a transaction.

They save/undo the work AND close the transaction in one go.

There's no "END TRANSACTION" command in SQL.

Once you COMMIT or ROLLBACK, you're done!

DDL: Data Definition Language

-- Create the structure
CREATE TABLE songs (
    id INTEGER PRIMARY KEY,
    title TEXT NOT NULL,
    artist TEXT NOT NULL,
    duration_seconds INTEGER,
    release_date DATE
);

-- Modify the structure
ALTER TABLE songs ADD COLUMN genre TEXT;

-- Destroy the structure
DROP TABLE songs;  -- ⚠️ Everything gone!

DML: Data Manipulation Language

The everyday SQL

-- Create: Add new data
INSERT INTO songs (title, artist, duration_seconds)
VALUES ('Flowers', 'Miley Cyrus', 200);

-- Read: Query data
SELECT title, artist FROM songs WHERE duration_seconds < 180;

-- Update: Modify existing data
UPDATE songs SET genre = 'Pop' WHERE artist = 'Taylor Swift';

-- Delete: Remove data
DELETE FROM songs WHERE release_date < '2000-01-01';

The SELECT Statement

This pattern solves the large majority of your data questions

SELECT     -- What columns?
FROM       -- What table?
JOIN       -- What other tables?
WHERE      -- What rows?
GROUP BY   -- How to group?
HAVING     -- Filter groups?
ORDER BY   -- What order?
LIMIT      -- How many?

SQL Reads Like English

-- Almost natural language
SELECT name, age
FROM students
WHERE grade > 15
ORDER BY age DESC
LIMIT 10;

Translates to: "Show me the names and ages of students with grades above 15, sorted by age (oldest first), but only the top 10"

This is why SQL survived: humans can read it

The Power of JOINs

Without JOIN (multiple queries):
# Get user
user = db.query("
  SELECT * FROM users WHERE id = 42
")
# Get their orders
orders = db.query(f"
  SELECT *
  FROM orders
  WHERE user_id = {user.id}
")
# Get order details
for order in orders:
    items = db.query(f"
      SELECT *
      FROM items
      WHERE order_id = {order.id}
    ")
With JOIN (one query): ```sql SELECT u.name, o.date, i.product FROM users u JOIN orders o ON u.id = o.user_id JOIN items i ON o.id = i.order_id WHERE u.id = 42; ```

Joins

 ---

What is a JOIN?

A JOIN combines rows from two or more tables based on a related column between them.

Basic JOIN Syntax:

SELECT columns
FROM table1
JOIN table2
ON table1.column = table2.column;

Example : the tree database

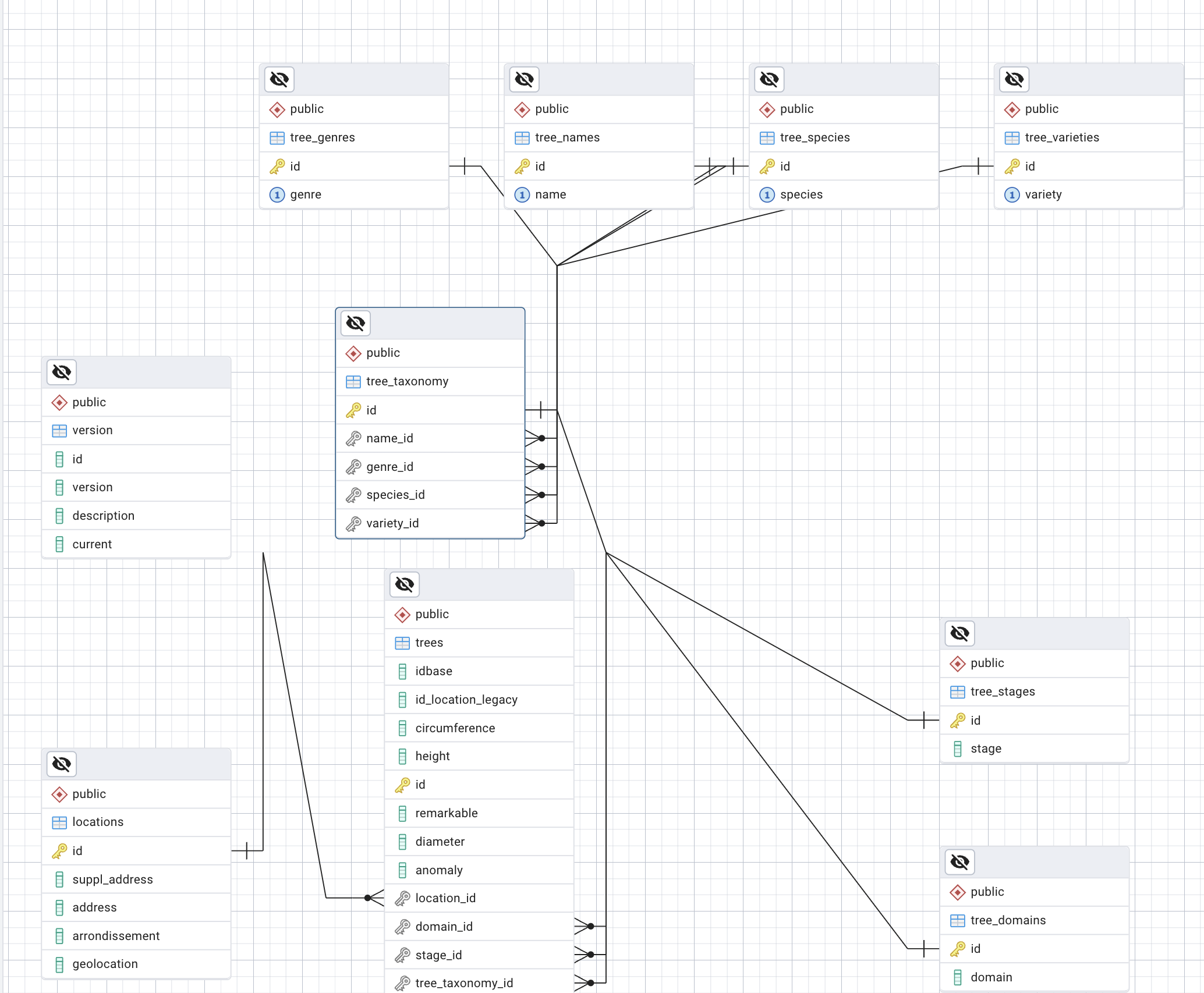

ERD trees normalized

using aliases: trees : tr, taxonomy : ta, tree_species : sp

SELECT * FROM trees tr
JOIN taxonomy ta on ta.id = tr.taxonomy_id
JOIN tree_species sp on sp.id = ta.species_id
WHERE tr.circumference > 50 and sp.species = 'tomentosa';

instead of

SELECT * FROM trees
JOIN taxonomy on taxonomy.id = trees.taxonomy_id
JOIN tree_species on tree_species.id = taxonomy.species_id
WHERE trees.circumference > 50 and tree_species.species = 'tomentosa';

Types of JOINs

1. INNER JOIN (Default)

Returns only matching records from both tables.

SELECT customers.name, orders.order_date
FROM customers
INNER JOIN orders
ON customers.customer_id = orders.customer_id;

Example

INNER JOIN

SELECT
    m.movie_id,
    m.release_year,
    m.title,
    a.actor_name,
FROM movies m
JOIN actors a ON m.movie_id = a.movie_id;

Result example:

movie_idtitlerelease_yearactor_name
1The Matrix1999Keanu Reeves
1The Matrix1999Laurence F.
2Inception2010Leonardo D.

Movies with no actors will not be shown. NULL values are used instead:

movie_idtitlerelease_yearactor_namerole
3Documentary XYZ2023NULLNULL
4Silent Film1920NULLNULL

Similarly the actors with no movies will not be shown.

2. LEFT JOIN (LEFT OUTER JOIN)

Returns all records from the left table (the first from), and matched records from the right table (the table after the join).

SELECT
    m.movie_id,
    m.title,
    m.release_year,
    a.actor_name,
    a.role
FROM movies m
LEFT JOIN actors a ON m.movie_id = a.movie_id
ORDER BY m.title;

Result example:

also returns the movies with no actors

movie_idtitlerelease_yearactor_namerole
1The Matrix1999Keanu ReevesNeo
1The Matrix1999Laurence F.Morpheus
2Inception2010Leonardo D.Cobb
3Documentary XYZ2027NULLNULL
4Silent Film1920NULLNULL

The key point: LEFT JOIN keeps ALL movies, even if they have no actors in the actors table. Those movies will show NULL values for the actor columns.

This may eventually be useful for:

3. RIGHT JOIN (RIGHT OUTER JOIN)

Returns all records from the right table, and matched records from the left table.

SELECT
    m.movie_id,
    m.title,
    m.release_year,
    a.actor_name,
    a.role
FROM movies m
RIGHT JOIN actors a ON m.movie_id = a.movie_id
ORDER BY m.title;

NULL values appear for actors with no movie

4. FULL OUTER JOIN

Returns all records when there's a match in either table.

SELECT
    m.movie_id,
    m.title,
    m.release_year,
    a.actor_name,
    a.role
FROM movies m
FULL OUTER JOIN actors a ON m.movie_id = a.movie_id
ORDER BY m.title;

Result example:

All movies AND all actors, even unmatched ones

movie_idtitlerelease_yearactor_namerole
NULLNULLNULLAlphonseNULL
NULLNULLNULLNephew of AlphonseNULL
1The Matrix1999Keanu ReevesNeo
2Inception2010Leonardo D.Cobb
3Documentary XYZ2023NULLNULL
4Silent Film1920NULLNULL

The key difference: FULL OUTER JOIN keeps EVERYTHING from both tables:

This creates three groups in your results:

5. CROSS JOIN

when you do not have a ON clause, it is a cross join

Returns the Cartesian product of both tables (every row paired with every row).

SELECT customers.name, products.product_name
FROM customers
CROSS JOIN products;
ERD customers orders

Performance Tips

Common Mistakes to Avoid

Vocabulary

Projection

When we select a set of columns and not all the columns we are doing a projection

This returns all the columns of the table:

select * from movies

This returns only the title and released_year column

select title, released_year from movies

We can apply functions to the columns during the projections, for instance:

select avg(IMDB_Rating), max(IMDB_Rating), min(IMDB_Rating) from movies;

Filtering

When we select a set of rows and not all the rows we are doing a filtering

select title from movies where IMDB_Rating > 8;

we can use multiple conditions

select title
from movies
where IMDB_Rating > 8
AND released_year > 2000;

select title
from movies
where IMDB_Rating > 8
OR released_year > 2000;
1 / 0
