Expectations from a database

• consistency and accuracy
• fast data retrieval
• can evolve with business requirements
• can scale as data volume increases
• minimal costs

Database Design Goals

Simplicity

Simplicity: Create an understandable structure for developers and analysts

So the question is:

Spoiler alert: it always comes down to balancing between read and write performance

Scope

We start with Entity-Relationship Diagrams: ERDs

and then:

• OLAP vs OLTP databases and design strategies
• Normalization
  • anomalies to detect the need for normalization
  • normalization criteria: normal forms: 1NF, 2NF, 3NF
• Denormalization when needed (OLAP)

Entity Relation Diagrams

The ER model was created to visualize data structures and relationships in many situations.

• Object-Oriented Systems
• Software Architecture
• Business Process Modeling
• Data Flow in systems
• and Relational Databases

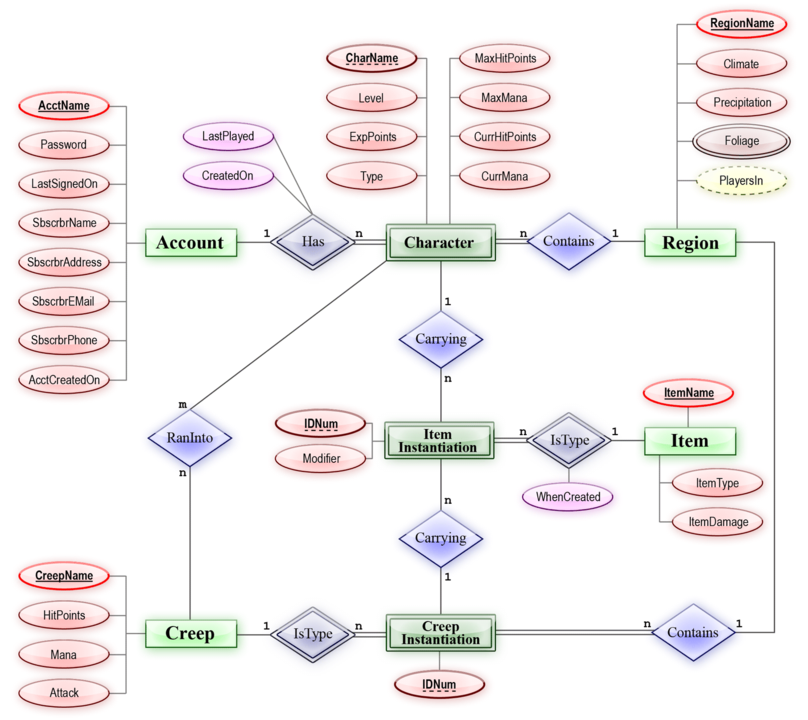

ER diagrams help in system design, information architecture, and application workflows.

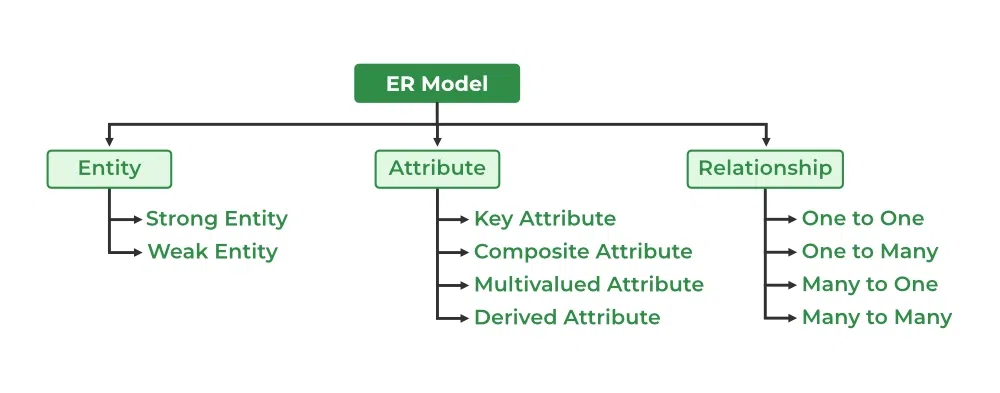

Components of an ER diagram

• Entity: An objects that is stored as data such as Student, Course or Company.
• Attribute: Properties that describes an entity such as student_id, course_name, or employee_email.
• Relationship: A connection between entities such as “a Student enrolls in a Course”.

ER diagram rules

see the wikipedia page

ER Grammar Mapping: Songs & Playlists Example

1. Common Noun → Entity Type
   • “Song” is an entity type (a class of things)
   • “Playlist” is an entity type
   • “User” is an entity type
   • “Artist” is an entity type
2. Proper Noun → Entity (Instance)
   • “Bohemian Rhapsody” is a specific song entity
   • “Summer Vibes 2024” is a specific playlist entity
   • “John Smith” is a specific user entity
   • “Queen” is a specific artist entity
3. Transitive Verb → Relationship Type (Verbs that need an object)
   • User creates Playlist
   • Playlist contains Song
   • Artist performs Song
   • User shares Playlist
4. Intransitive Verb → Attribute Type (Verbs that don’t need an object - describe state/action)
   • Song plays → becomes duration attribute (3:42)
   • Song streams → becomes play_count attribute
   • Playlist exists → becomes created_date attribute
5. Adjective → Attribute for Entity (Describes characteristics of nouns/entities)
   • Popular song → popularity_score attribute
   • Long song → duration attribute
   • Public playlist → is_public attribute (boolean)
   • Verified artist → is_verified attribute
6. Adverb → Attribute for Relationship (Describes HOW the relationship occurs)
   • User creates playlist recently → timestamp attribute on “creates” relationship
   • Song was added first → position attribute on “contains” relationship
   • User shares playlist publicly → sharing_type attribute on “shares” relationship
   • Song plays frequently → play_frequency attribute on user-song relationship

Complete Example Sentences Mapped to ER:

“The verified artist Queen performs the popular song Bohemian Rhapsody”

• Entity types: Artist, Song
• Entities: Queen, Bohemian Rhapsody
• Relationship: performs
• Attributes: is_verified (Artist), popularity_score (Song)

“John recently created a public playlist called Summer Vibes”

• Entity types: User, Playlist
• Entities: John, Summer Vibes
• Relationship: creates
• Relationship attribute: timestamp (recently)
• Entity attribute: is_public (public)

“The playlist frequently contains long songs”

• Entity types: Playlist, Song
• Relationship: contains
• Relationship attribute: frequency (frequently)
• Entity attribute: duration (long)

Visual ER Representation:

[User] ----creates----> [Playlist] ----contains----> [Song]
  |        (when?)         |          (position?)       |
  |                        |                            |
  name                  is_public                   duration
  email                 name                        title
                        created_date                popularity

                                                    [Artist]
                                                        |
                                                    performs
                                                        |
                                                    [Song]

• Nouns become things we store (entities)
• Verbs become connections or properties
• Adjectives/Adverbs become descriptive data (attributes)

ER diagram for relational databases

In the context of relational databases, the ER Diagram represent the structure of the database.

• entities are tables
• attributes are table columns
• relations between entities can be
  • one to one
  • one to many
  • many to many

The ER diagram displays the relations between the entities (tables) present in the database and lists their attributes (columns).

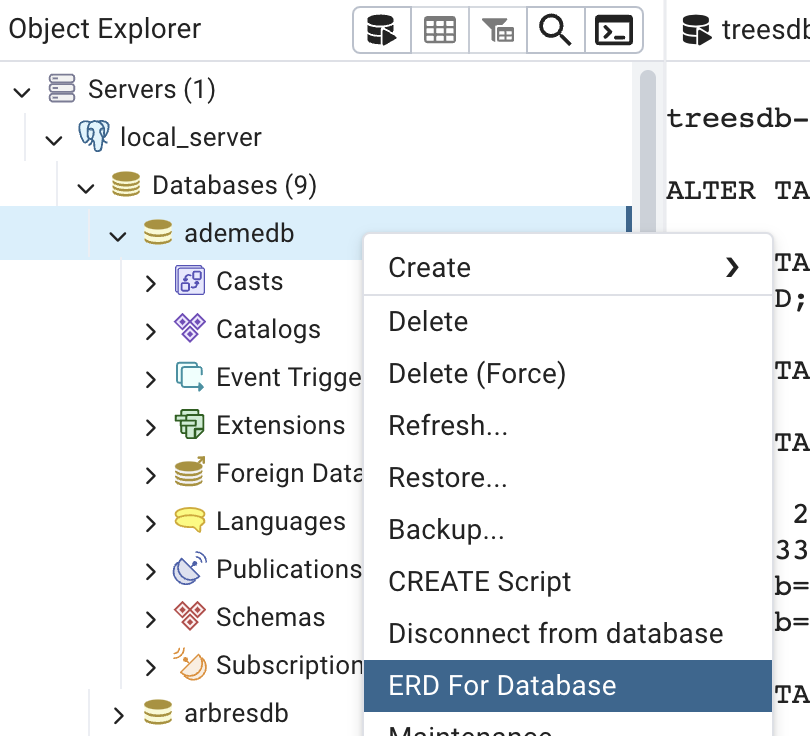

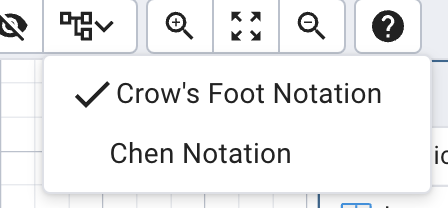

Generate an ERD in pgAdmin

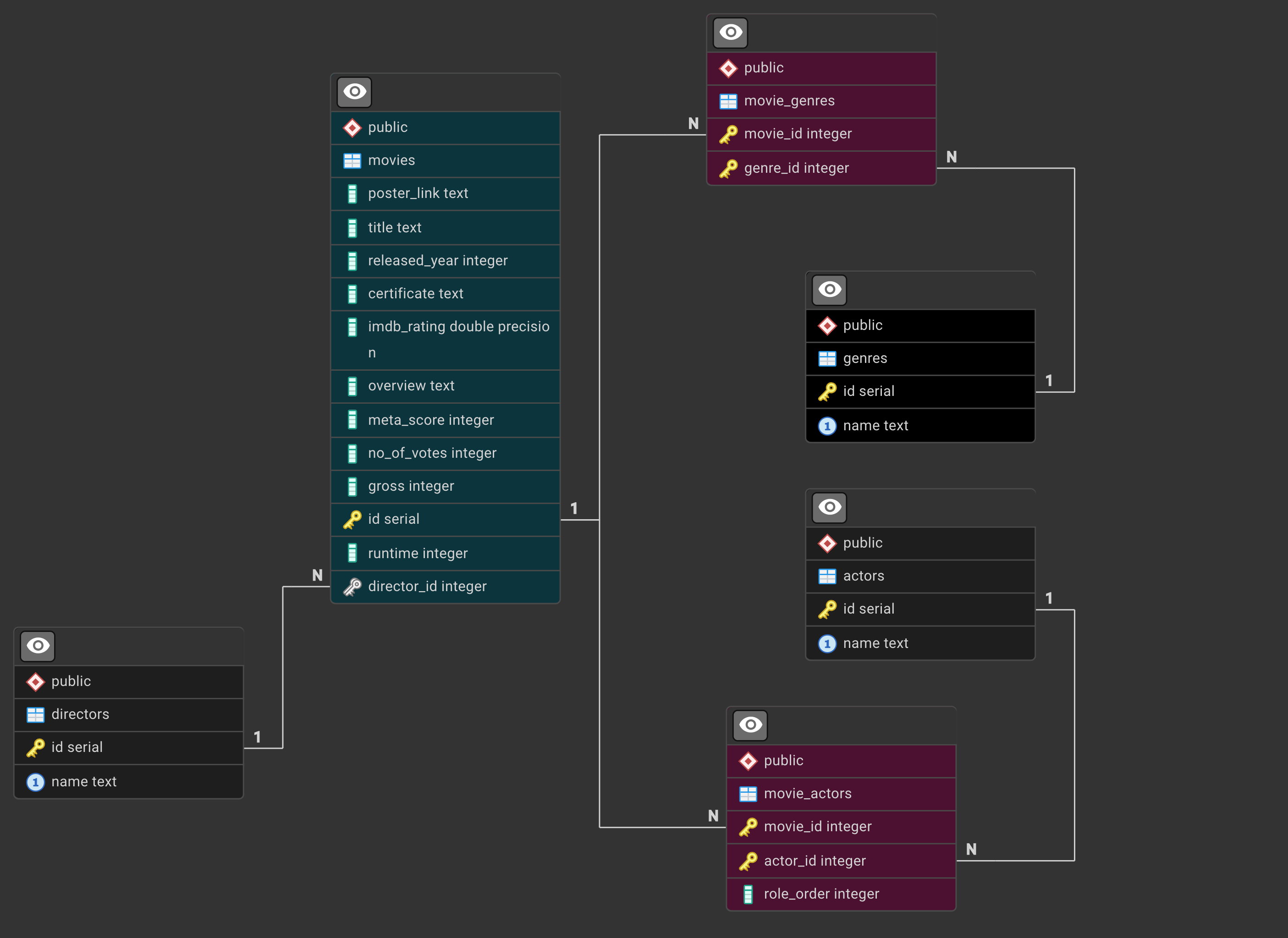

ERD - IMDB normalized

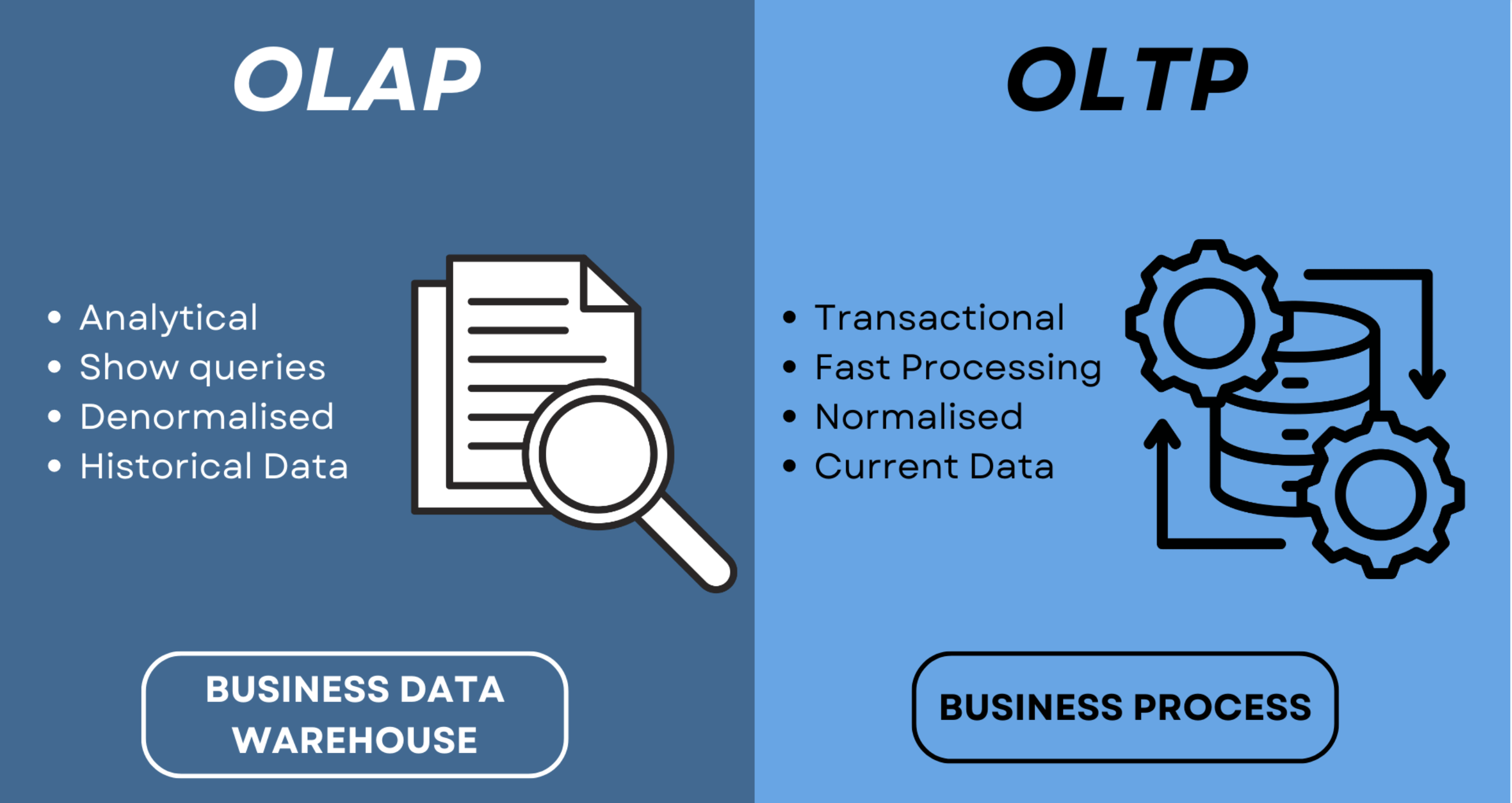

2 main types of databases: OLAP vs OLTP

The usage of a database drives its data structure.

OLAP : Online Analytical Processing

• analysis, BI, reporting, dashboards,
• optimized for high read volume
• complex queries (lots of joins and calculations)

• can be asynchronous, query execution does not have to be lightning fast

• historical data

OLAP does not have to be super fast

example:

• Spotify personalizes homepages with custom songs and playlists based on user preferences.
• Netflix movie recommendation system.

OLTP: Online Transaction Processing,

• applications, transactions, high write volume
• optimized for high write volume: data integrity, fast updates and inserts
• ACID properties for transactions (all or nothing) (ACID: (Atomicity, Consistency, Isolation, Durability))

• synchronous, real time, speed is super important

• operational data

OLTP has to be super fast

example:

• ATM center is an OLTP application. OLTP handles the ACID properties during data transactions via the application.
• Online banking, Online airline ticket booking, sending a text message, add an item to a shopping cart.

Further reading : difference between olap and oltp in dbms.

Look at the table of differences and the Q&A at the end of the article.

Quiz

For each scenario, determine whether it’s more suited for an OLTP (Online Transaction Processing) or OLAP (Online Analytical Processing) system.

• Liking a friend’s post on Instagram.
• Analyzing trending hashtags on Mastodon over the past month.
• Sending a Snapchat message to a friend.
• Netflix recommending shows based on your viewing history.
• Ordering food through a delivery app.
• Making an in-app purchase.
• TikTok or Youtube analyzing which video types keep users watching longer.
• A fitness app calculating your average daily steps for the past year.

Solution

• OLTP: Liking a post is a simple, immediate transaction.
• OLAP: Analyzing trends over time involves processing large amounts of historical data.
• OLTP: Sending a message is a quick, individual transaction.
• OLAP: Recommendations are based on analyzing viewing patterns across users and time.
• OLTP: Placing an order is a specific, time-sensitive transaction.
• OLTP: An in-app purchase is a single, immediate financial transaction.
• OLAP: This involves analyzing user behavior patterns across many videos and users.
• OLAP: Calculating long-term averages involves processing historical data over time.

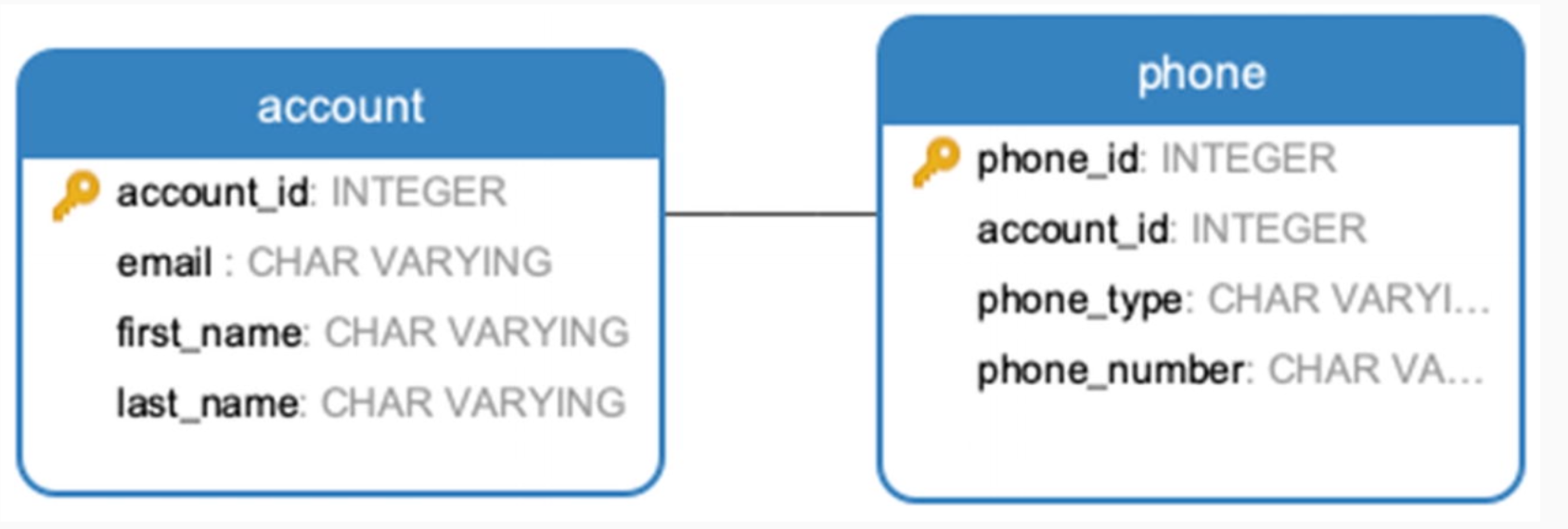

A user can have multiple phones. Consider the 2 database designs:

which design (1 or 2 tables) is better in terms of faster or simpler query for:

• dealing with missing phone type (no work phone)
• adding a new phone type (new secret phone)
• flagging a phone as primary
• handling a user with no phone
• displaying all the phones of an account in a dashboard
• fast retrieval search over phone number(s)

Normalization

The general goal of normalization is to reduce data redundancy and dependency by organizing data into separate, related tables.

A database is normalized if:

or more formally

This helps maintain data integrity and flexibility:

• logical entities
• independence between tables
• uniqueness of data

Normalized databases are

• easy to update
• easy to maintain

In the 1 table design for the account and its phone numbers, a phone number value depends on the name of the phone column (home_phone, work_phone, …) not just the account_id key: We can say it’s not normalized

With a table dedicated to the phones, (design with 2 tables), the phone value depends only on the phone_id key: the tables are normalized.

Denormalization

The idea of denormalization is to create data redundancy to simplify queries and make OLAP queries faster.

Redundant data : the same data / info exists in multiple tables

SELECT queries involve fewer JOINs.

However INSERT, UPDATE, DELETE queries are more complex as multiple tables must be accounted for. Therefore data integrity is more complex to preserve.

Scenario:

In a social network, imagine that you have two tables:

1. The Users table: Contains user information like user_id name and email.

1. The Posts table: Contains posts made by users, with fields like post_id content, publication_date … and the post’s author information through the user_id.

In a normalized database: users and their posts are only linked by the user_id which is a foreign key in the posts table.

The users table has no information about posts. And similarly the posts table is all about the posts and not their author (besides the user_id foreign key).

So when you need to display the user’s name next to their post, you need to JOIN Users and Posts tables.

SELECT p.*, u.name
FROM POSTS p
JOIN users u on p.user_id = u.id
WHERE p.pub_date = '2022-10-02';

Too many JOINs over large volumes of data will slow down the query.

Denormalization

In order to improve performance, you can denormalize the posts table by adding the user_name to the Posts table.

A Denormalized Posts table would then look like:

SELECT p.*
FROM POSTS p
WHERE p.pub_date = '2022-10-02';

Faster read performance since you can fetch the user_name along with the post data without needing to perform a join between the Users and Posts tables.

But

Data redundancy: If Ulaf changes his name, you will need to update it in both the Users table and every row in the Posts table that references him. This increases the complexity of updates.

Anomalies

So, given a database, how do you know if it needs to be normalized?

There are 3 types of anomalies that you can look for:

• insertion
• update
• deletion

A normalized database will solve these anomalies.

Insertion anomalies

Consider the table of teachers and their courses

Now a new teacher (Alexis), is recruited by the school. The teacher does not have a course assigned to yet. If we want to insert the teacher in the table we need to put a NULL value in the course column.

and NULL values can cause problems!!! (more on that later)

More generally:

• in a relation where an item (A) has many (or has one) other items (B), but A and B are in the same table.
• so for a new item A without items B, inserting the new A means the value for B has to be null

Update anomaly

Consider now the following movies, directors, year and production house

(chatGPT knows Bollywood 😄) + (I ❤️ Shahrukh Khan)

If one of the production house changes its name, we need to update multiple rows.

In a small example like this one, this is not a problem since the query is trivial but in large databases some rows may not be updated.

• human error when writing the update query or doing manual updates
• Redundant Data: updating multiple rows at the same time can cause performance issues in large databases with millions of records.
• Data Locking: In a multi-user environment, updating several rows at once may lock parts of the database, affecting performance and potentially leading to delays in accessing data for other users or systems.
• if changes are made in stages or asynchronously, data can temporarily or permanently enter an inconsistent state.

By moving the production house data in its own separate table, then updating its name would only impact one row!

Deletion errors

Here is a table about programmers, languages and (secret) projects

Let’s say that for imperative reasons we need to cover up the existence of the War AI project. And we will delete all rows that mention that project in the databse. Then an unfortunate consequence is that we will also also delete all mentions of Marge and Ned since they are not involved in other projects.

So by deleting an attribute we also remove certain valus of other attributes.

In short

When you have different but related natural / logical entities packed together in the same table, this causes anomalies and you need to normalize.

The problem with null values

Why is it a problem to have NULL values in a column?

• Ambiguity: Null can mean “unknown”, “not applicable” or “missing” leading to confusion.

• Null values require special handling and complicates
  • queries: (IS NULL vs =) .
  • data analysis: NULL values are ignored in aggregate functions (like SUM, COUNT).

• Impacts indexing and performance: since Nulls are excluded from indexes

• Violates normalization: indicates poor database design or incomplete relationships.

So avoid NULL values if you can!

Anomalies in the imdb top 1000 table

This is the schema for the imdb top 1000 table

What anomalies can you spot?

CREATE TABLE imdb_raw (
  Poster_Link   TEXT,
  Series_Title  TEXT,
  Released_Year TEXT,
  Certificate   TEXT,
  Runtime       TEXT,
  Genre         TEXT,       -- "drama, sci-fi, action"
  IMDB_Rating   TEXT,
  Overview      TEXT,
  Meta_score    TEXT,
  Director      TEXT,
  Star1         TEXT,
  Star2         TEXT,
  Star3         TEXT,
  Star4         TEXT,
  No_of_Votes   TEXT,
  Gross         TEXT
);

1. [deletion] Losing Director Information

• If we delete the only movie by a particular director (e.g., “The Shawshank Redemption” is Frank Darabont’s only film in our top 1000)
• We lose all information that Frank Darabont exists as a director

Problem: Deleting a movie shouldn’t mean losing knowledge about directors

2. [insertion] Can’t Track Actors Without Casting Them

• Can’t add a new actor to the database unless they’re Star1, Star2, Star3, or Star4 in some movie
• What if they’re the 5th lead? Or we want to track them before casting?

Problem: Actor existence shouldn’t depend on being in top 4 billing

3. [update] Updating Actor Information

If “Tom Hanks” appears as:

• Star1 in “Forrest Gump”
• Star2 in “Saving Private Ryan”
• Star3 in “The Green Mile”
• Star4 in “Cast Away”

To fix a typo (e.g., “Tom Hansk”):

• Must search all 4 Star columns across all rows
• Easy to miss instances

4. [update] Certificate/Rating System Changes

If rating system changes (e.g., “PG-13” becomes “T-13”):

• Must update every row with that certificate
• No central place to manage valid certificates

What about anomalies in the trees table ?

What anomalies can you find for each type: insertion, update and deletion

Insertion Anomalies:

• To add a new tree species or genre without an associated tree, we’d have to insert a record with null values for most fields, which is not ideal.
• We can’t add a new location without adding a tree, even if no trees exist there yet.

Update Anomalies:

• If we need to update information about a type of tree (e.g., its genre), we’d have to update multiple rows, risking inconsistency.
• Same for updating location information (e.g., arrondissement name) would require updating multiple rows, again risking inconsistency.

Deletion Anomalies:

• If we delete the last tree of a particular species, genre, variety, we lose all information about that species, genre or variety.

In short

Normal forms

A normal form is a rule that defines a level of normalization.

Normal forms are a gradual step by step process towards normalization. Each form is a guide that focuses on a single type of problem.

We can always choose to apply a normalization form or to ignore it

In the following, we mention:

• Relation, or an entity: table
• Attribute : column
• Primary key
• Composite key : key composed of multiple attributes

1NF

Each field contains a single value

which translates as no column as sets of values (relations) as elements

In short: columns cannot composite values : arrays, json, …

More on 1NF:

• Wikipedia: Satisfying 1NF

Does the tree table follow 1NF ? what about the imdb table ?

Wait, … what ?

There’s a contradiction between first normal form (1NF) and the existence of ARRAY and JSONB data types (see also POINT, HRANGE, composite types, and many other) in SQL databases.

The rule of thumb is :

When you frequently need to access, modify, handle the elements of the sets of values for a given record then apply 1NF

For instance a collaborative blog post where we start with 1 author (varchar), then a co-author comes along (array), then a third and a fourth. Then the 1st one give up and does not want to be in the list of authors etc etc etc. In that case using an Array to store the list of authors causes more trouble than it solves. and authors should have their own table.

In the end it’s a balance between simplicity and ease of control.

For instance:

• Use normalization (1NF) when:
  • Storing a list of order items, where each item needs its own price, quantity, and product reference.
  • Managing a list of phone numbers for contacts, where you need to query or update individual numbers.
• Use multi-value types when:
  • Storing tags for a blog post, where the tags are simply a list of strings with no additional attributes.
  • …

2NF

The table is in 2NF iff :

• The table is in 1NF,
• it has a single attribute unique identifier (UID),
• and every non key attribute is dependent on the entire UID

Some cases of non-compliance with 2NF

• Derived or calculated fields:
  • Relation: Employee(EmployeeID, Name, BirthDate, Age)
  • Here, Age is derived from BirthDate, causing a partial dependency.
• Redundant information:
  • Relation: Order(OrderID, ProductID, ProductName, ProductCategory)
  • ProductCategory and ProductName both depend on ProductID, not the full OrderID.
• general case: Inverted one to many
  • A has many Bs
  • Relation: B(Bid, B.attribute, A.attribute)
• Composite keys with partial dependencies:
  • Relation: R(A, B, C, D) where (A, B) is the composite primary key
  • If C depends only on A, we have a 2NF violation.

The 1 table version of the account phone table was not in 2NF.

see :

• Example of 2NF
• Satisfying 2NF

2NF violation in the trees table ?

The tree table has many 2NF violations, since all the categorical columns are into a one to many (category (A) has many trees (B)) relation.

2NF normalization tells us we should create a table for all the categorical columns.

But that may feel overkill and instead of simplifying the logical structure of the data it might add too much complexity it without clear gain. (but we will still do it anyway)

On the contrary, keeping the categories in the tree table is a form of denormalization.

When to apply 2NF to a categorical attribute ?

You might consider normalizing a categorical attribute (column) into a separate table if:

• The category data is large or complex (e.g., includes descriptions, hierarchies).
• Categories change frequently or need to be managed separately.
• There’s a need to enforce referential integrity on categories.
• The application requires complex operations or reporting on categories.

In practice the design of the database can evolve:

• Start with categorical attributes.
• You can always normalize later.

3NF

A relation R is in 3NF if and only if both of the following conditions hold:

• The relation is in second normal form (2NF).
• No non-prime attribute of R is transitively dependent on the primary key.

A transitive dependency occurs when a non-prime attribute (an attribute that is not part of any key) depends on another non-prime attribute, rather than depending directly on the primary key.

where:

• non-prime attribute: an attribute that is not part of any key

It’s becoming a bit abstract 🥱😴

For the statisticians in the room, it’s a bit like confonders.

So basically, in a table you would have 2 columns that are not keys that sort of depends on each other.

Example

Student(StudentID, Name, CourseID, CourseName, InstructorName)

This relation violates 3NF because:

• CourseID → CourseName (CourseName depends on CourseID, not on StudentID)
• CourseID → InstructorName (InstructorName depends on CourseID, not on StudentID)

Here, we have transitive dependencies:

• StudentID → CourseID → CourseName
• StudentID → CourseID → InstructorName

3NF on Wikipedia

Difference between 2NF and 3NF

3NF is similar to 2NF

The key differences:

• Nature of the dependency:

  • 2NF addresses partial dependencies on a key.
  • 3NF addresses transitive dependencies through non-key attributes.

• Scope of the problem:

  • 2NF focuses on the relationship between non-key attributes and parts of the key.
  • 3NF looks at dependencies between non-key attributes.

Denormalize

Denormalization means to choose not to follow a normal form to simplify things.

So, when can or should we denormalize?

Once you have thoroughly normalized your database, some difficulties may appear, either because the fully normalized schema is too heavy to deal with at the application level without any benefits, or because having a highly normalized schema involves performances penalties that you’ve measured and cannot tolerate.

Fully normalized schemas often have a high number of tables and references in between them. That means lots of foreign key constraints and lots of join operations in all your application queries.

When there’s no way to speed-up your application another way, then it is time to denormalize the schema, i.e. make a decision to put your data quality at risk in order to be able to serve your users and business.

Dimitri Fontaine - The Art of PostgreSQL (2022) The Art of PostgreSQL p 283

In short: Keep it simple

PostgreSQL multi-valued data types

PostgreSQL offers several data types that can store multiple values in a single column, which breaks the First Normal Form (1NF).

These types are often used for performance optimization, improved query efficiency, or when the data naturally fits a more complex structure.

There are many data types in postgreSQL

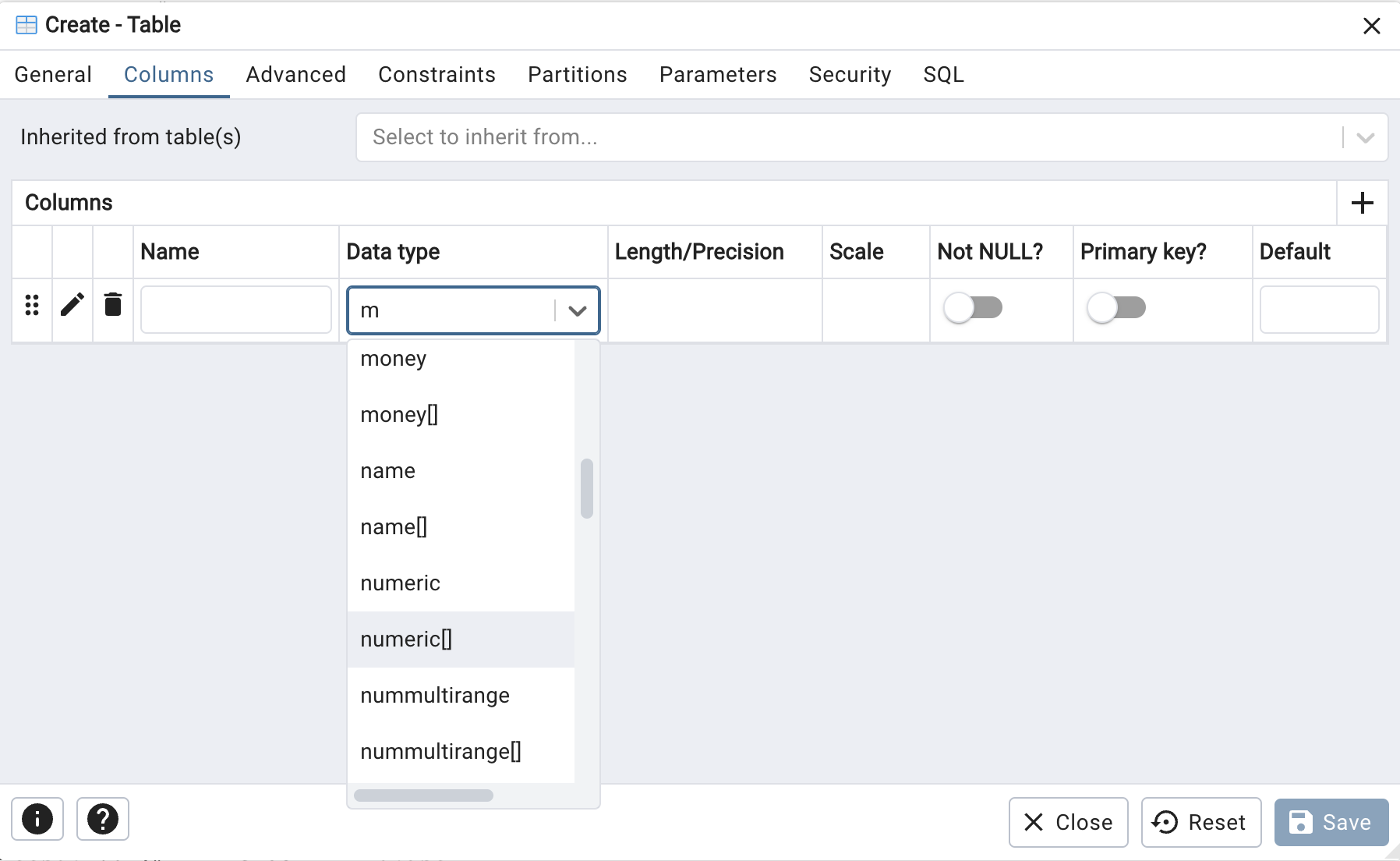

see for instance the long list of availabe data types when adding a column in pgAdmin

and the documentation on data types

Array Types:

Allows storing multiple values of the same type in a single column.

Example: INTEGER[], TEXT[]

When to use:

• When you need to store a fixed or variable number of elements of the same type.
• For implementing tags, categories, or any list-like data where order matters.
• When you frequently need to query or update the entire list as a unit.

JSONB (and JSON):

Stores JSON data with indexing and querying capabilities

When to use:

• For semi-structured data that doesn’t fit well into a relational model.
• When your application needs to store flexible, schema-less data.
• For data that is frequently read but less frequently updated.
• When you need to query or index JSON data efficiently.

also : HSTORE, RANGE …

Composite types

User-defined type that combines multiple fields into a single column.

Example: CREATE TYPE address AS ( street TEXT, city TEXT, zip TEXT );

When to use:

• When you have a logical grouping of fields that are always used together.
• For improving query performance by reducing joins.
• When you want to enforce a structure on a group of related fields.
