PostgreSQL Authentication

pg_hba.conf, authentication, security, configuration

Authentication and configuration

https://www.postgresql.org/docs/current/auth-pg-hba-conf.html

The configuration files for your local PostgreSQL server are located in the PostgreSQL data directory .

Locate the PostgreSQL data directory .

It’s in the PostgreSQL data directory .

So where is this PostgreSQL data directory?

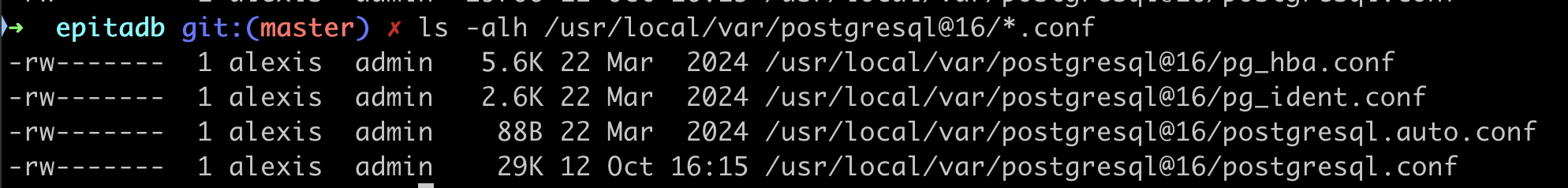

In this folder you will find 2 important files

data directory

Client authentication

Client authentication is controlled by the pg_hba.conf configuration file.

where HBA stands for host-based authentication.

This file is created when the data directory is initialized by initdb.

Host or Client auth ?

The confusion arises because “host” in pg_hba.conf isn’t the opposite of “client”

The pg_hba.conf file in PostgreSQL configures client authentication, specifying methods and parameters for connections. Key authentication methods include:

  1. scram-sha-256: Verifies passwords securely; ideal for environments needing robust security.
  2. md5: Supports legacy compatibility, useful for environments with older clients.
  3. peer (Unix sockets): Matches OS usernames to database users, simplifying local access control.
  4. password: Requires plaintext passwords; suitable only for trusted networks.

These methods provide flexibility for various security levels and compatibility needs. More details here.

Let’s look at one example of the pg_hba.conf file

# TYPE  DATABASE        USER            ADDRESS                 METHOD

# "local" is for Unix domain socket connections only
local   all             all                                     trust
# IPv4 local connections:
host    all             all             127.0.0.1/32            trust
# IPv6 local connections:
host    all             all             ::1/128                 trust

Here, The trust authentication method allows any user who can connect to the database to log in without a password! This is typically used only in local environments because it grants access without verification, making it unsuitable for production or remote connections.

Another example

# TYPE  DATABASE  USER  ADDRESS      METHOD
host    paris     bob   10.0.0.0/24  scram-sha-256
local   all       alice              peer

Here’s a detailed explanation of each line in the pg_hba.conf example:

# TYPE  DATABASE  USER  ADDRESS      METHOD
# First rule: Remote TCP/IP connection
host    paris     bob   10.0.0.0/24  scram-sha-256
# Second rule: Local Unix socket connection
local   all       alice              peer
  1. First rule: host paris bob 10.0.0.0/24 scram-sha-256
    • TYPE = host: Allows TCP/IP connections
    • DATABASE = paris: Only applies to the ‘paris’ database (where your trees are stored)
    • USER = bob: Only applies to user ‘bob’
    • ADDRESS = 10.0.0.0/24: Only allows connections from this subnet (IP range 10.0.0.1 to 10.0.0.254)
    • METHOD = scram-sha-256: Uses password authentication with SCRAM-SHA-256 encryption (most secure password method in PostgreSQL)
  2. Second rule: local all alice peer
    • TYPE = local: Uses Unix-domain sockets (only works when connecting from the same machine)
    • DATABASE = all: Applies to all databases
    • USER = alice: Only applies to user ‘alice’
    • ADDRESS: Empty because local connections don’t use network addresses
    • METHOD = peer: Authenticates using the operating system’s user name (if OS user ‘alice’ tries to connect as PostgreSQL user ‘alice’, it’s allowed)

peer method

The peer authentication method in PostgreSQL is used for local connections over Unix sockets on Linux systems.

With peer authentication, PostgreSQL checks the client’s operating system username and compares it to the PostgreSQL username attempting to connect. If they match, access is granted without requiring a password.

This method is often used for convenience in local environments, allowing trusted users to connect easily without additional login prompts. Not suitable for remote or multi-user environments.

Unix Sockets

A Unix socket is a special file used for inter-process communication (IPC) on Unix-like operating systems. It enables different processes on the same machine to communicate directly through the operating system’s file system rather than over a network. In PostgreSQL, Unix sockets facilitate secure, efficient, and fast local connections by allowing the database server and client to exchange data without requiring TCP/IP.

add a specific user

to declare the user epita on the database treesdb with a password connection we would add the line

local treesdb epita  md5

SSH tunnel not passwords

Passwords are so last century!

You can use SSH with proper keys to secure PostgreSQL connections.

PostgreSQL itself does not directly support SSH-based authentication, but you can set up an SSH tunnel between the client and server. This method secures the database connection by wrapping it in SSH, allowing access without exposing the database server directly.

To set up an SSH tunnel, run this on the client machine:

ssh -L 5432:localhost:5432 user@remote_host

This forwards the local port 5432 to the PostgreSQL server on the remote host via SSH.

The view : pg_hba_file_rules

The pg_hba_file_rules view provides a summary of the contents of the client authentication configuration file

select * from pg_hba_file_rules;
 rule_number |                file_name                 | line_number | type  |   database    | user_name |  address  |                 netmask                 | auth_method | options | error
-------------+------------------------------------------+-------------+-------+---------------+-----------+-----------+-----------------------------------------+-------------+---------+--------
           1 | /usr/local/var/postgresql@16/pg_hba.conf |         117 | local | {all}         | {all}     | [null]    | [null]                                  | trust       | [null]  | [null]
           2 | /usr/local/var/postgresql@16/pg_hba.conf |         119 | host  | {all}         | {all}     | 127.0.0.1 | 255.255.255.255                         | trust       | [null]  | [null]
           3 | /usr/local/var/postgresql@16/pg_hba.conf |         121 | host  | {all}         | {all}     | ::1       | ffff:ffff:ffff:ffff:ffff:ffff:ffff:ffff | trust       | [null]  | [null]
           4 | /usr/local/var/postgresql@16/pg_hba.conf |         124 | local | {replication} | {all}     | [null]    | [null]                                  | trust       | [null]  | [null]
           5 | /usr/local/var/postgresql@16/pg_hba.conf |         125 | host  | {replication} | {all}     | 127.0.0.1 | 255.255.255.255                         | trust       | [null]  | [null]
           6 | /usr/local/var/postgresql@16/pg_hba.conf |         126 | host  | {replication} | {all}     | ::1       | ffff:ffff:ffff:ffff:ffff:ffff:ffff:ffff | trust       | [null]  | [null]
(6 rows)

see https://www.postgresql.org/docs/current/view-pg-hba-file-rules.html

postgresql.conf

main sections in a generic postgresql.conf file:

  1. Connection Settings
    • Controls how PostgreSQL accepts connections
    • Defines network interfaces, max connections, authentication timeouts
  2. Memory Settings
    • Manages memory allocation for various operations such as joins or maintenance operations
  3. Write Ahead Log (WAL)
    • Controls database durability and recovery
  4. Query Planner
    • Influences how PostgreSQL executes queries
  5. Disk Settings
    • Controls where data is stored and how including the data_directory or the log_directory and log_filename
  6. Logging and Monitoring
    • Defines what gets logged and how
  7. Autovacuum Settings
    • Controls automatic cleanup of dead rows
  8. Client Connection Defaults
    • Default behaviors for client sessions: timezone, encoding, timeouts
  9. Lock Management
    • Controls deadlock handling and lock timeouts
  10. Resource Usage
    • Controls system resource consumption: max_stack_depth, max_files_per_process, …

The most commonly adjusted sections for basic tuning are:

check out
